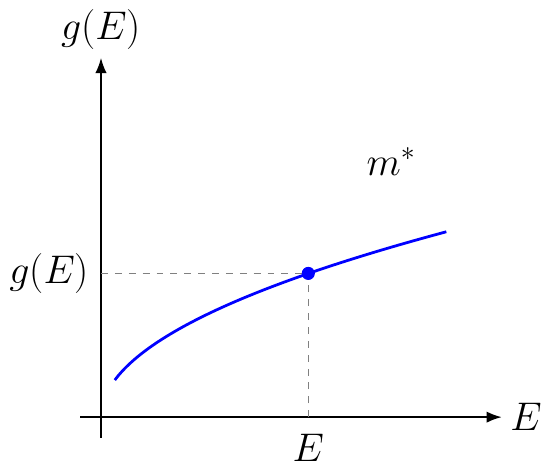

Density of States Effective Mass Relation

\[N_c=2\left(\frac{2\pi m^\ast kT}{h^2}\right)^{3/2}\]

Variables

Nc[N_c]effective density of states in conduction band (1/m³)

meff[m*]effective mass of electron (kg)

kBoltzmann constant (J/K)

Tabsolute temperature (K)

hPlanck constant (J·s)

Description

What is this formula?

The density of states effective mass relation calculates the effective density of electronic states in the conduction band of a semiconductor. It connects the density of states with effective electron mass and temperature.

When to use it

This equation is used in semiconductor physics and electronic material analysis to estimate carrier distributions and thermal behavior in semiconductors.

Example

A semiconductor has:

m* = 0.12×9.11×10^-31 kg

T = 300 K

Using:

N_c = 2((2πm*kT)/(h²))^(3/2)

Where:

k = 1.38×10^-23 J/K

h = 6.626×10^-34 J·s

Substitution:

N_c = 2((2×π×(0.12×9.11×10^-31)×1.38×10^-23×300)/(6.626×10^-34)²)^(3/2)

Result:

N_c ≈ 1.04×10^24 1/m³

Applications

- Semiconductor carrier calculations

- Density of states analysis

- Semiconductor device modeling

- Electronic material characterization

- Band structure analysis

- Solid state physics
